eXact™ 2 Portable Spectrophotometer
Next Generation of Color Measurement
Available in three models, eXact 2 reimagines color measurement with enhanced accuracy and speed, unrivaled non-contact video measurement and zoom technology, onboard Wi-Fi, and fleet management powered by X-Rite Link. eXact 2 also helps printers meet print quality program requirements and industry standards.
Introducing the eXact 2: The Ultimate Color Management Solution

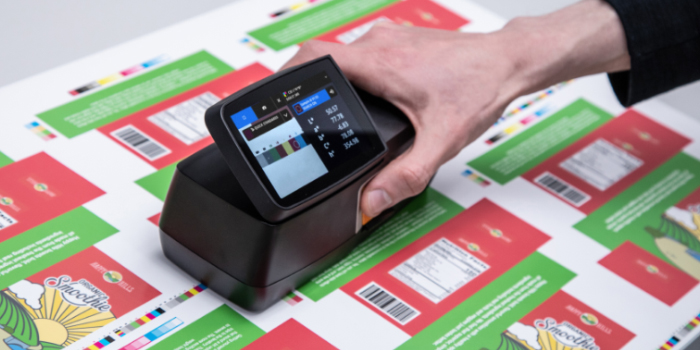

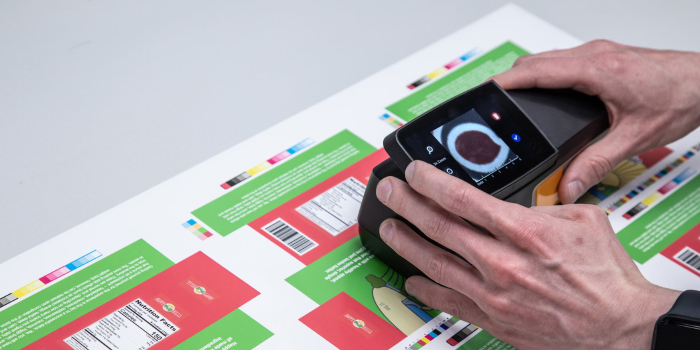

Take Accurate Measurements and Inspect Patches with Video Targeting
All eXact 2 models use Mantis video targeting, combined with a high-resolution display that is 30% larger than previous generations, making it easy to find the measurement area. With Digital Loupe, you can quickly zoom to inspect or capture an image to include in your audit trail.
A Pressroom Operator's Best Friend
“We have stringent reporting needs. This is a device we can use press-side and allow the team to work without leaving their area and give us the kind of reporting we need with a user-friendly interface as well.” - Steve Lehning, GR Label
Quickly Scan M0, M1, M2, M3 in a Single Measurement
The eXact 2 Plus can easily toggle between spot and scan measurements using integrated wheels and patch recognition technology, speeding up measurement by 17%. eXact 2 Plus simultaneously measures M0, UV included/ISO 13655:2017; M1, D50/ISO 13655:2017; M2, UV excluded/ISO 13655:2017; and M3 - Polarization/ISO 13655:2017.
A Connected Ink and Print Workflow
Quickly collect and visualize your color data to find the information you need when you need it. All eXact 2 models offer on-screen, embedded quality control and quality assurance capabilities and simplified ink workflows. Work faster and more securely anywhere in your facility with onboard WiFi.
Specifications
Use this product for the following applications
| Aperture | 1.5 mm, 2 mm, 4 mm or 6 mm |
| Battery | Lithium Ion, 3.63VDC, 4750mAh |
| BestMatch Feature | Yes |
| Calibration | Automatic on white reference |
| Color Differences | CIE ∆E* (1976), ∆ECMC, CIE ∆E* (2000), and CIE ∆E* (1994) |
| Color Spaces | CIE L*a*b*, CIE L*C*h° |
| Communication Interface | USB-C; Wi-Fi |
| Connectivity | USB-C; Wi-Fi |
| Density Range | 0.0 D – 3.0 D |
| Density Standards | Status A, E, I, T and G |

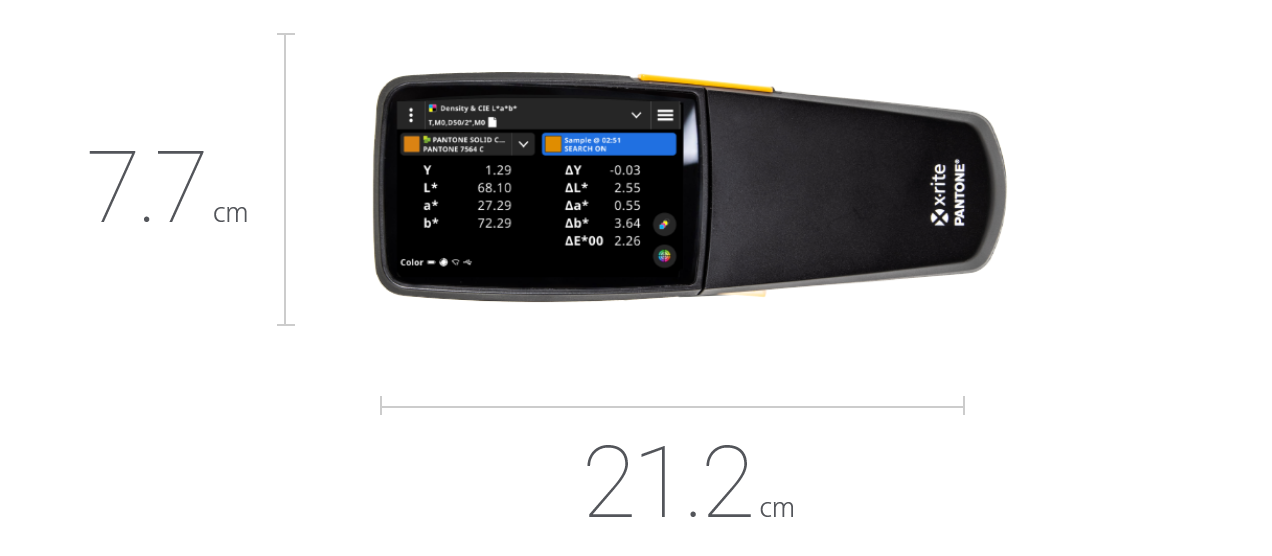

| Dimensions (length, width, height) | 21.2 cm x 7.7 cm x 7.7 cm (LxWxH) 8.4" x 3.0" x 3.0" (LxWxH) |
| G7 Certification | Yes with embedded G7, PSO, Japan Color job templates |
| Humidity | 30 to 85% RH (non-condensing) |
| Illuminants | A, C, D50, D55, D65, D75, F2, F7, F11, F12 |
| Import/Export Format | CxF3 |
| Industry Standards | ISO 5-4:2009(E), ISO 13655:2017 |
| Instrument Display | Color touch-screen, 800 x 480 pixels |
| Inter-Instrument Agreement | Average: 0.25 ΔEab, Max: 0.45 ΔEab (for M3: 0.55 ΔEab) (Measurements using X-Rite manufacturing standards at a temperature of 23°C +/- 1°C, 40-60% RH for all measurement modes on 12 BCRA color tiles and a white ceramic reference (D50, 2°)) |
| Languages Supported | Bulgarian Chinese Simplified, Chinese Traditional, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Romanian, Russian, Serbian, Slovenian, Spanish, Swedish, Thai, Turkish, Vietnamese |
| Light Source | LED |
| Macintosh | macOS 10.15, macOS 11, macOS 12 |
| Measurement Conditions | 2: M0, M1 (method 2), M2, M3 |
| Measurement Geometry | 45°:0° ring illumination optics, ISO 13655:2017 |
| Measurement Time | < 1 sec |
| NetProfiler Support | Yes |
| Observers | 2° and 10° |
| Operating Temperature Range | 10°C to 35°C 50°F to 95°F |
| PantoneLIVE Support | Yes; Embedded Pantone Libraries |
| Pass / Fail | Yes |
| Scan Length | Max: 1,120mm (44”) |
| Scanning Capability | Yes, Embedded Scanning |
| Service Indicator | Certification Reminder |
| Short Term Repeatability - Density | +/- 0.01 D for CMYK (Status E or Status T measurements, maximum error compared to mean value of 10 measurements every 5 seconds at 2.0 D except for M3 Yellow at 1.7 D) |
| Short Term Repeatability - White | 0.02 ΔEab (standard deviation) White BCRA (Error compared to mean value of 20 measurements every 5 seconds) |
| Single Pass Scan | M0, M1, M2, M3 |
| Software Development Kit |
Yes |
| Spectral Analyzer | DRS spectral engine |
| Spectral Interval | 10 nm |
| Spectral Range | 400 nm to 700 nm |
| Standards | Memory capacity for more than 50,000 standards |
| Storage Temperature Range | -20° to 50°C -4° to 122°F |
| Supported Substrates | Paper, corrugated, carton board |
| User Experience | Start-up wizard, configurable, customize toolset, upgradable |
| Voltage | 12 VDC @ 2.5 A (Docking Station Power Supply) |
| Warranty | 1 year |
| Weight | 620g, 1.4 lbs. |
| What's Included? | USB-C cable with Adapter for USB-A, Power Supply, Software and documentation, Docking/Charging Station, Quick Start Guide, Carrying case, ISO 9000 certificate. |
| Windows | Windows 10 (32 and 64 bit), Windows 11 |
