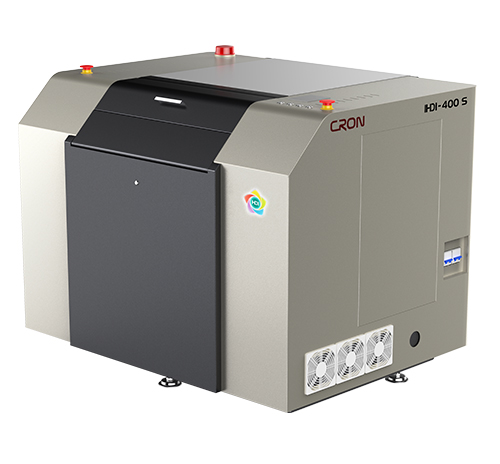

HDI-400
CRON HDI-400 specially designed for high quality narrow web/label printing.
Configured with the advanced CRON laser optical system, CRON HDI-400 reliably provides accurate high definition label prints.
The new CRON HDI-400 is now the first choice for label printers due to its easy operation, image performance, and stability.

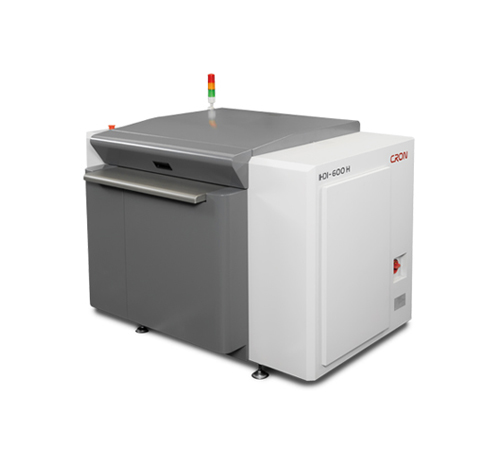

HDI FLEXO 600
The amazing CRON HDI Flexo 600 is a space-saving and affordable CTP unit designed for small format and narrow web applications such as labels, stickers and tags. Its small footprint and ease of use make this the perfect unit for all small packaging and labelling work, with astonishing cost-savings and a minimum plate size of just 100 x 100mm.

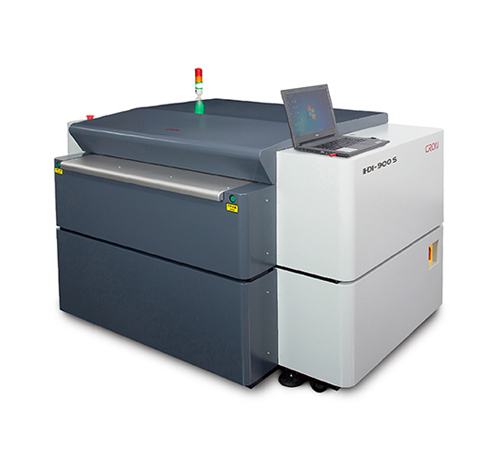

HDI FLEXO 920
The CRON HDI Flexo 920 is a highly flexible CTP for small and medium formats such as label printing, paper cups and cartons. The HDI Flexo 920 offers superior quality, high productivity and cost efficiency on a very compact footprint, making it a smart choice for all packaging converters.
HDI FLEXO 1600
The CRON HDI Flexo 1600 sets an astonishing new price point for large format Flexo imagers, whilst delivering the same high-quality imaging as all CRON devices. Its unique yet simple design allows minimum handling of the plate material, minimising waste without any compromise in quality. The HDI 1600 covers an extensive range of wide-format applications such as flexible packaging, corrugated and folding carton printing, supporting the common large plate size of 1524 x 1067mm, nevertheless maintaining a convenient compact footprint.

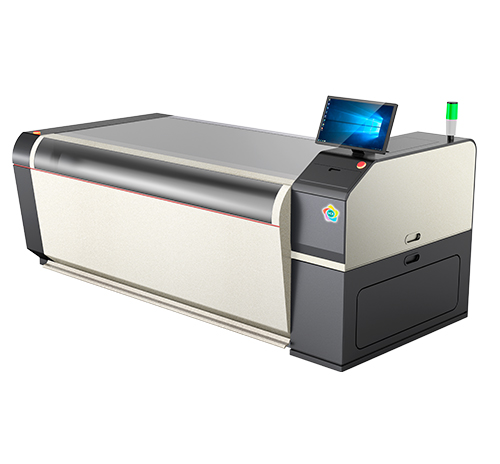

HDI FLEXO 2000
CRON HDI-2000 series is now the very first choice for flexible packaging and corrugated markets.
CRON HDI-2000 accommodates the common size of 50”*80'' flexo plates.
Equipped with CRON's dual clamping systems, HDI-2000 greatly assists trade shops in efficiency improvement.
Template driven auto-control of resolution, power setting, drum balance, and auto-focus from 0.11 – 6.35mm (.250") thick material.
| Model | HDI-400S | HDI-400S+ | HDI-400H |
| Max size Min size |
430 × 560 mm (17 × 22 inch) 100 × 100 mm (3.9 × 3.9 inch) |
| Plate loading | Manual mounting, Auto loading |
| Resolution | 4000 dpi or 4800/5080 dpi | 4000/8000 dpi or 4800/5080/9600 dpi |
| # S series speed | 1.0~1.8 m2/h (3.7~2.0J/cm2) 4800/5080 dpi |
| # S+ series speed | 1.0~1.8 m2/h (3.7~2.0J/cm2) 4800/5080 dpi 1.0 m2/h (3.7~2.0J/cm2) 9600 dpi * |
| # H series speed | 2.0~4.5 m2/h (3.7~2.0J/cm2) 4800/5080 dpi 2.0~2.4 m2/h (3.7~2.0J/cm2) 9600 dpi ** |
| Plate type | Digital flexo plate, Letterpress, Ablative film, Thermal Offset |
| Plate thickness | 0.11mm ~ 3mm |
| Net weight | 500 kg |
| Power supply | Single phase 220V ± 5% 50/60Hz |
| Rated Power | 4.3 KW |
| Dimension | 1160×900×950 mm (W×L×H) |
| Environment | 18~28℃; RH: 40%~60% |
| odel | HDI-600S | HDI-600S+ | HDI-600H | HDI-600H+ |
| Max size Min size |
560x660mm 100x100mm |
| Resolution | 2400 - 5080dpi | 2400 - 9600dpi |
| Laser wavelength | 830nm |
| Speed | 1.5m²/h | 3.2m²/h | 5.7m²/h |
| Plate loading | Semi-automatic loading |
| Plate type | Thermal Film, Digital Polyester-back Flexo and Letterpress plates, Thermal Offset plates and Dry Offset Metal-back plates |
| Plate thickness | 0.10mm - 3.94mm |
| Footprint Dimension | 1400 x 1175 x 1050 mm (W x L x H) |
| Model | HDI-920S | HDI-920S+ | HDI-920H | HDI-920H+ |
| Max size Min size |
675x920mm 100x190mm |
| Resolution | 2400 – 5080 dpi | 2400 – 9600 dpi |
| Laser wavelength | 830nm |
| Speed | 1.8m²/h | 3.3m²/h | 5.7m²/h |
| Plate loading | Semi-automatic loading |
| Plate type | Thermal Film, Digital Polyester-back Flexo and Letterpress plates, Thermal Offset plates and Dry Offset Metal-back plates |
| Plate thickness | 0.10mm - 3.94mm |
| Footprint Dimension | 1650 x 1300 x 1100 mm (W x L x H) |
| Model | HDI-1600S | HDI-1600S+ | HDI-1600H | HDI-1600H+ |
| Max size Min size |
1200x1524mm 200x200mm |
| Resolution | 4000 - 5080dpi | 4000 - 9600dpi |
| Laser wavelength | 830nm |
| Speed | 1.3m²/h | 3.2m²/h | 5.7m²/h |
| Plate loading | Semi-automatic loading |
| Plate type | Thermal Film, Digital Polyester-back Flexo and Letterpress plates, Ablative film |
| Plate thickness | 0.10mm - 3.94mm |
| Footprint Dimension | 2315 x 1150 x 1175 mm (W x L x H) |
| Model | HDI-2000S | HDI-2000S+ | HDI-2000H | HDI-2000H+ |
| Max size Min size |
2032 × 1270 mm (80 × 50 in) 200 × 200 mm (7.9 × 7.9 in) |
| Plate loading | Manual mounting, Auto loading |
| Resolution | 4000 dpi or 4800/5080 dpi | 4000/8000 dpi or 4800/5080/9600 dpi |
| # S series speed | 1.0~2.4 m2/h (4.5~2.0J/cm2) 4800/5080 dpi |
| # S+ series speed | 1.0~2.4 m2/h (4.5~2.0J/cm2) 4800/5080 dpi 1.0~1.6 m2/h (4.5~2.0J/cm2) 9600 dpi |
| # H series speed | 2.0~4.6 m2/h (4.5~2.0J/cm2) 4800/5080 dpi 1.6~2.4 m2/h (4.5~2.0J/cm2) 9600 dpi |
| # H+ series speed | 3.8~4.6 m2/h (4.5~2.0J/cm2) 4800/5080 dpi 2.84 m2/h (4.5~2.0J/cm2) 9600 dpi |
| Plate type | Digital flexo plate, Letterpress, Ablative film |
| Plate thickness | 0.11mm ~ 6.35mm |
| Net weight | 2800 kg |
| Power supply | Single phase 220V ± 5% 50/60Hz |
| Rated Power | 6KW |
| Dimension | 2810×1400×1125 mm (W×L×H) |
| Environment | 18~28℃; RH: 40%~60% |
