Nylon coated wire, It has the feature of Perfect smooth surface, Bright colored, Good coating flexibility and mechanical strength, High coating adhesion - High abrasion resistance, High-temperature cycle resistance, Humid-proof, rusty-proof and weathering resistance.
we can according to the customer's requirements to produce all kinds specs and colors
nylon coated wire, and offer good services to customers.
we can according to the customer's requirements to produce all kinds specs and colors
nylon coated wire, and offer good services to customers.
|
Technical parameter of nylon coated wire |
|||
|
Diameter (mm) |
Diameter Tolerance (mm) |
Tensile Strength (N/mm2) |
Weight (KG/1000m) |
|
0.70 |
-0.02/+0.02 |
750±25 |
2.54 |
|
0.80 |
-0.02/+0.02 |
750±25 |
3.4 |
|
0.85 |
-0.02/+0.02 |
750±25 |
3.87 |
|
0.90 |
-0.02/+0.02 |
750±25 |
4.37 |
|
0.95 |
-0.02/+0.02 |
750±25 |
4.8 |
|
1.00 |
-0.02/+0.02 |
750±25 |
5.47 |
|
1.05 |
-0.02/+0.02 |
750±25 |
5.95 |
|
1.10 |
-0.02/+0.02 |
750±25 |
6.7 |
|
1.15 |
-0.02/+0.02 |
700±25 |
7.36 |
|
1.20 |
-0.02/+0.02 |
700±25 |
8.05 |
|
1.25 |
-0.02/+0.02 |
675±25 |
8.77 |
|
1.30 |
-0.02/+0.02 |
675±25 |
9.52 |
|
1.40 |
-0.02/+0.02 |
600±25 |
11.11 |
|
1.50 |
-0.02/+0.02 |
575±25 |
12.83 |

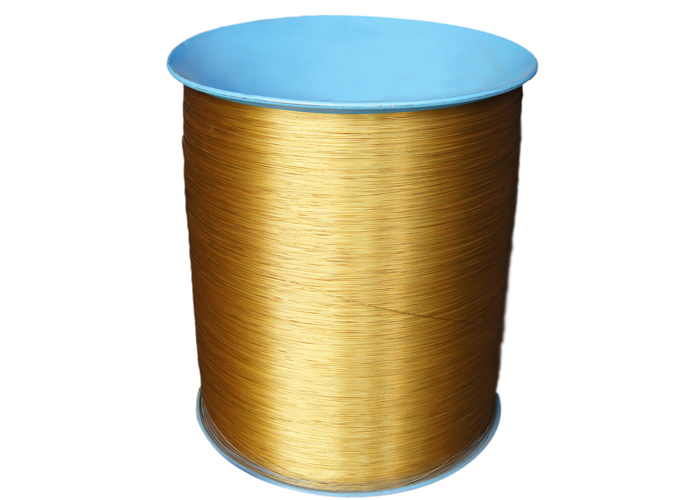

Nylon coated Wire-Gold

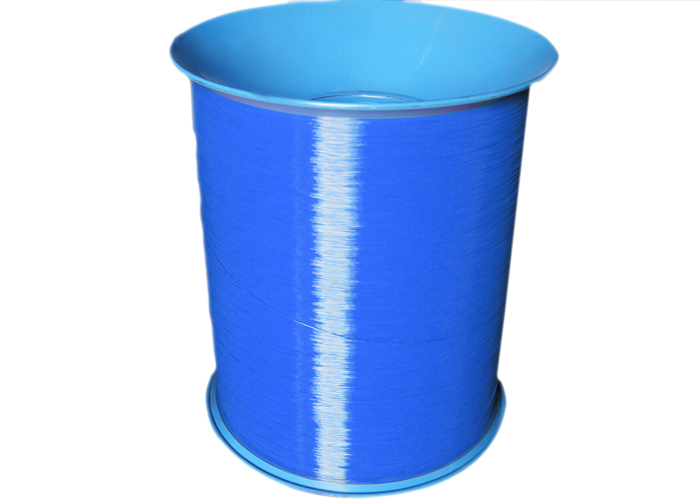

Nylon coated Wire-Blue

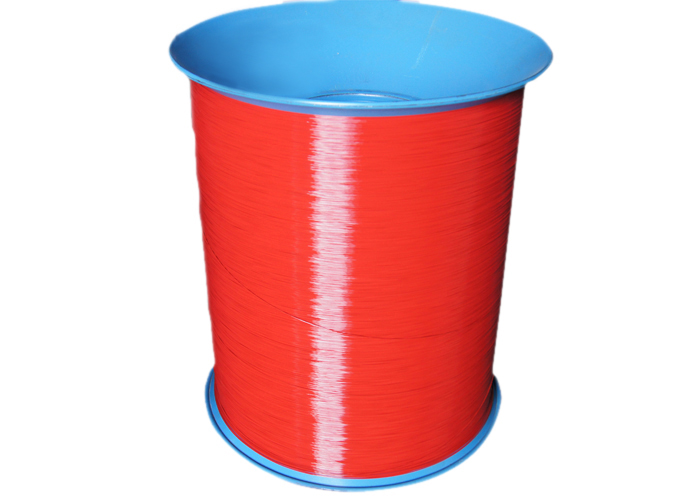

Nylon coated Wire-Red

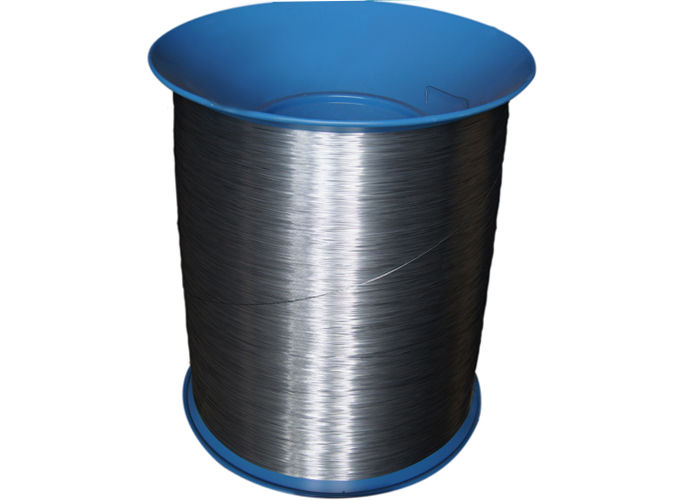

Nylon coated Wire-Silver

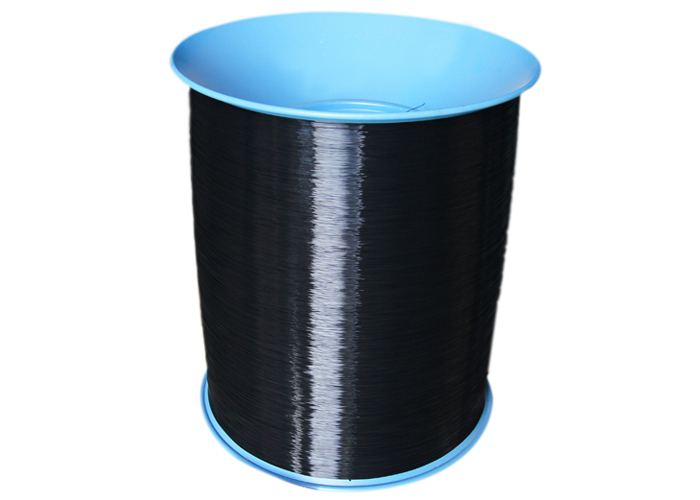

Nylon coated Wire-Black

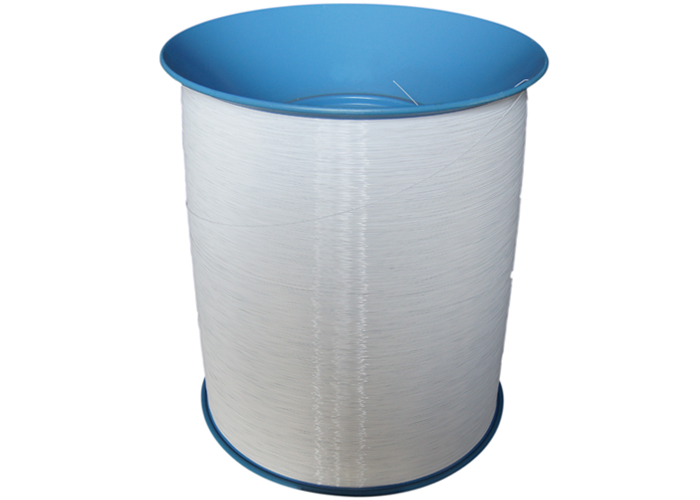

Nylon Coated Wire-White
