INDUSTRIAL AUTOMATIC BINDING MACHINE

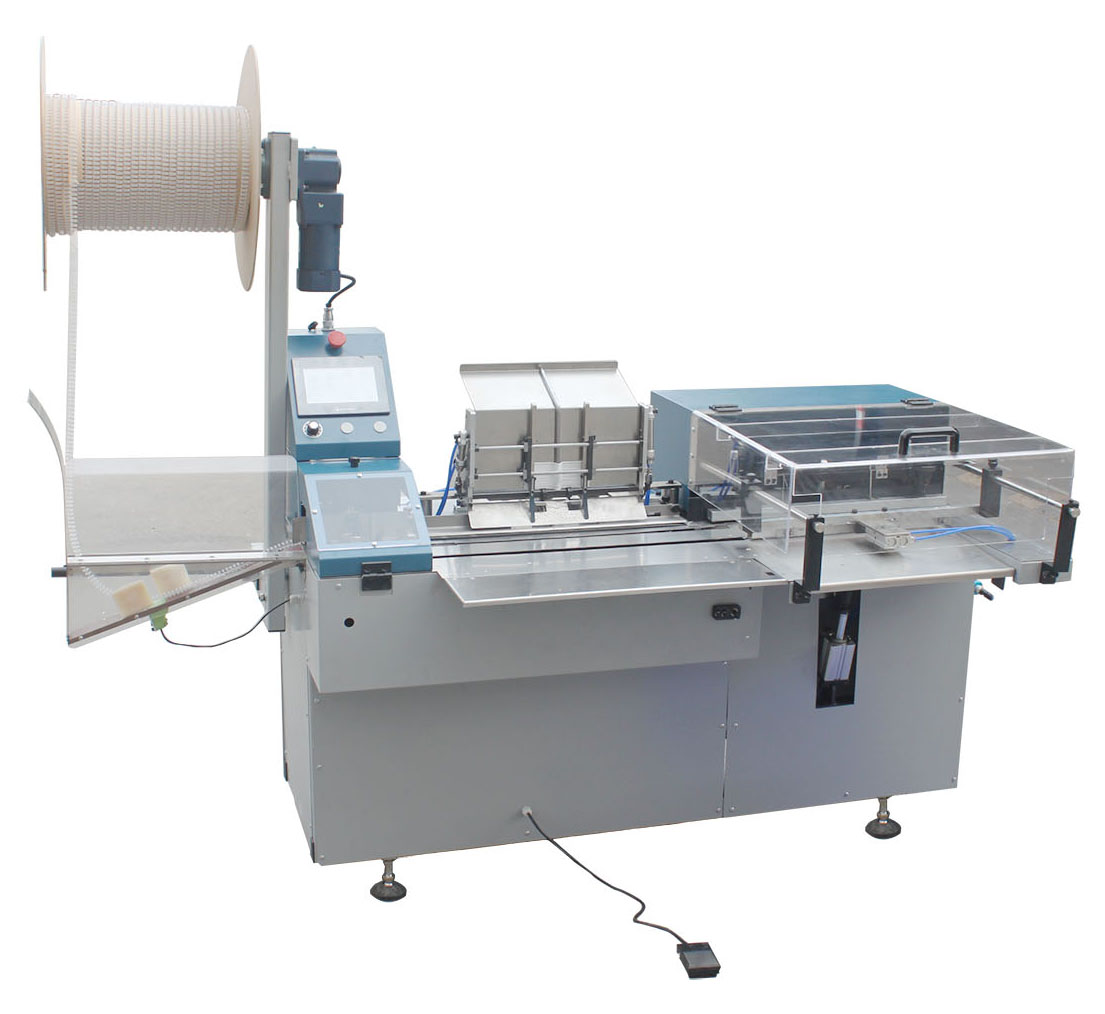

AG420 SEMI AUTOMATIC BINDING MACHINE
This machine is widely used for binding double loop wire notebooks, desk calendar and wall calendar etc. It can bind from size 1/4” to 1+1/4” without changing the binding tools. It will cut, convey and close the wire then drop on a conveyor. It increases the production efficiency and lowers the cost remarkably.
1. No need to change the binding tools as the binding height is adjustable for all the sizes from 1/4” to 1+1/4”.
2. It can be used to bind books or calendars with overhanging cover.
3. Option for calendar hanger feeder system and conveyor.
4. Controlled by computer, easy to setup.
| Max binding size | 420*420mm |
| Min binding size | 70*100mm |
| Wire binding capacity | 1/4”-1+1/4” |
| Binding thickness capacity | 1.5mm-27mm |
| Binding speed | 600-1100books/hour |
| Power | AC220V/1PH/50(60)HZ |
| Machine weight | 255KG |
| Max hanger length | 380mm |
| Compressed air pressure | 6-8bar |
| Dimension | 2220mm*1000mm*1800mm |

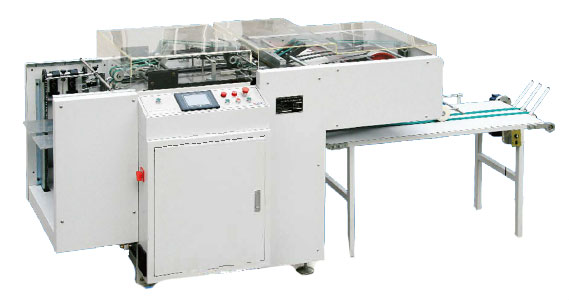

AUTOMATIC PUNCHING MACHINE
+ High-speed automatic punching machine will cycle up to 100 strokes per minute
+ Can punch a variety of hole patterns
+ Will also punch perforated holes for easy tear-off
ELECTRIC BINDING MACHINE

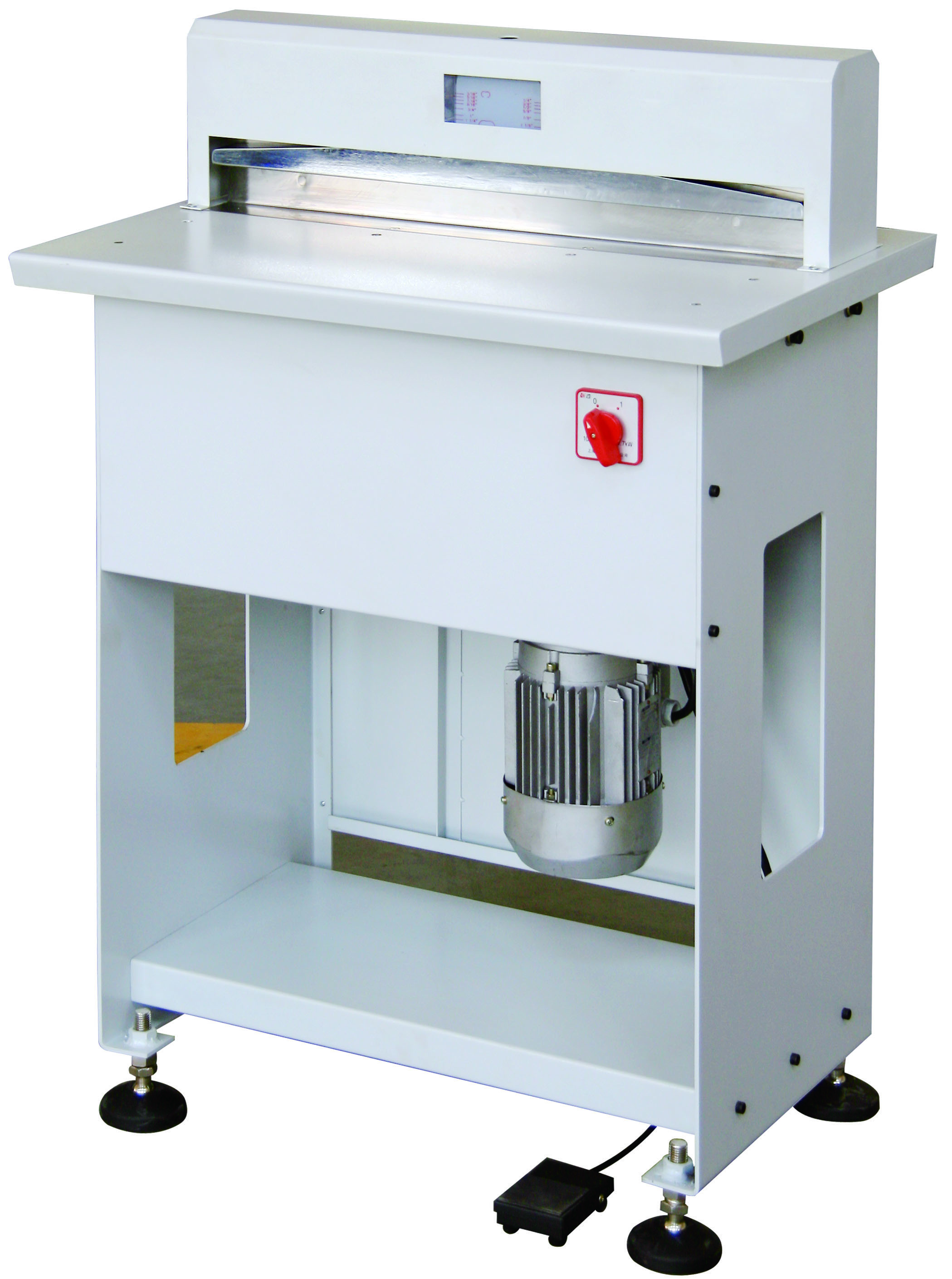

AG600 TR WIRE BINDING MACHINE
1.Easy control and steadily
2.Manual control, prevent injuries
3.Binding calendar and notebook etc
4.Binding height is easily adjustable
| Binding Capacity | 3/16”~1+1/4” |
| Binding Length | 600mm |
| Max Binding Speed | 90times/min |
| Machine Dimension（L×W×H） | 700×488×990mm |
| Net Weight | 95KG |
| Power | AC380V/3Ph/50Hz/0.55kw |

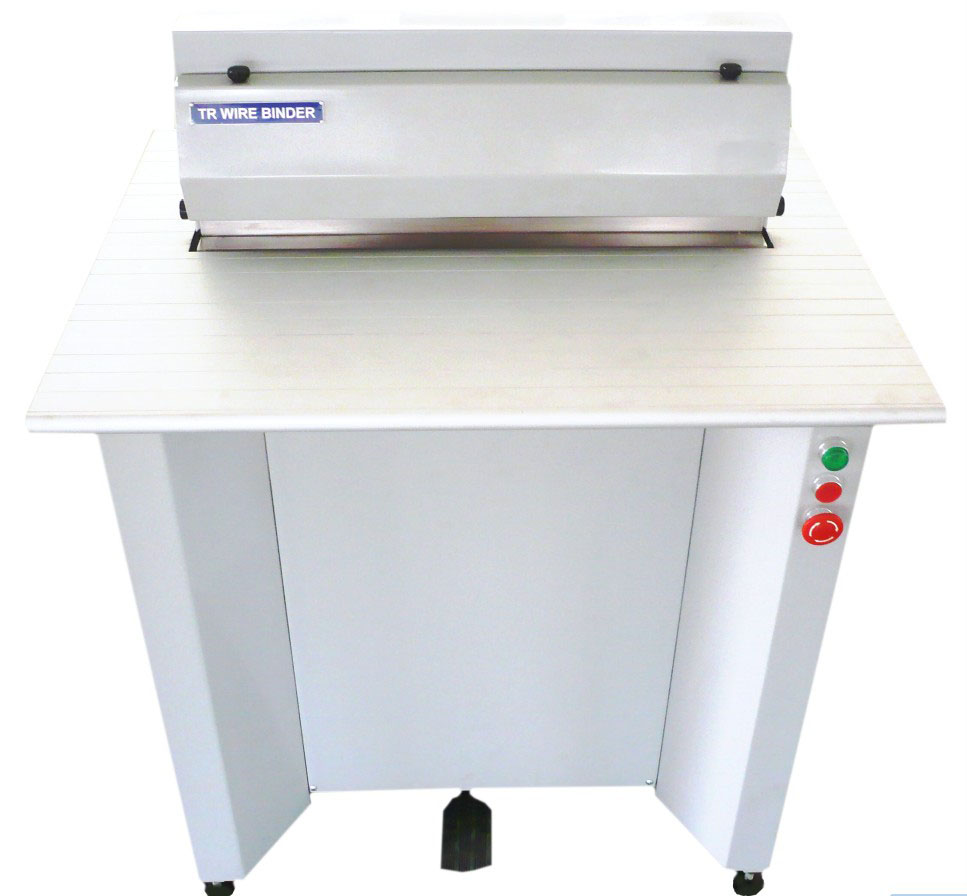

AGD600 TR WIRE BINDING MACHINE
1.Easy control and steadily
2.Manual control, prevent injuries
3.Binding calendar and notebook etc
4.Binding height is easily adjustable
| Binding Capacity | 3/16”~1+1/4” |
| Binding Length | 600mm |
| Max Binding Speed | 130times/min |
| Machine Dimension（L×W×H） | 800×613×1042mm |
| Net Weight | 145KG |
| Power | AC380V/3Ph/50Hz/0.55kw |

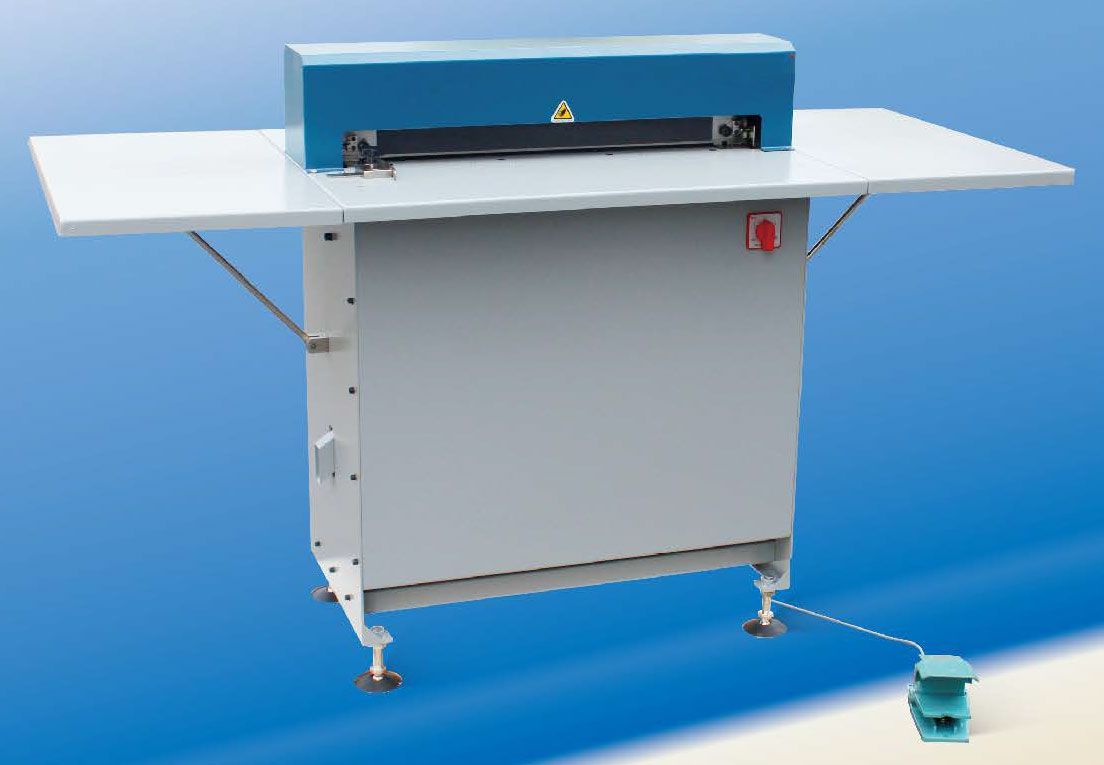

Electric Punching & Binding Machine
+ One punching die can punch two different holes
+ Easy control, safety operation and steadily
+ Used for all kinds of plastic and paper material
+ Binding height is easily adjustable
+ Max punching height is easily adjustable
Wire Cutter
